Bottom Slitter Knife

  • Replacement Bottom Slitter Knives — We supply bottom slitter blades for paper converting, printing and packaging equipment. Share your machine model or existing knife details.
  • Custom Dimensions & Working Faces — We review OD, bore, thickness, edge profiles and mounting details against your drawing or replacement blade specifications.
  • Top & Bottom Knife Matching — Keeping your existing top blade? We can review its dimensions and condition alongside the new bottom knife requirements.
  • Material Selection Support — Explore D2, HSS and carbide options based on your cutting material, knife design and operating requirements.
  • Custom & Repeat Orders — Need replacement knives or regular supply? Send your drawing, required quantity and delivery destination for a quotation.

Features

Replacement Bottom Slitter Knives for Paper Converting

Need a replacement bottom slitter knife for your paper converting or packaging line? At SHJ KNIFE, we supply bottom slitter blades and review custom knife requirements using your drawings, measurements and existing blade specifications.

The bottom knife plays an important role in a shear slitting system. Its working face, cutting profile and position relative to the top knife can affect the cutting result. That's why we look beyond the outside diameter when reviewing a replacement.

Whether you're replacing a worn bottom blade or sourcing knives for regular maintenance, we'll help you review the details needed for a suitable quotation.

Send Your Bottom Knife Drawing

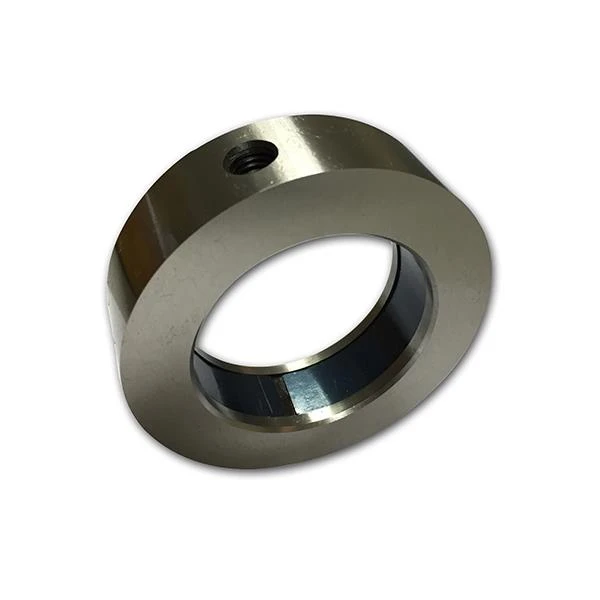

Bottom slitter knife for paper converting machinery

Replacing only the bottom knife? Please tell us whether your existing top slitter blade will remain in service. Its current dimensions, working side and condition may affect the replacement requirements.

Bottom Slitter Knife Dimensions & Specifications

Looking for a replacement bottom knife or a custom blade? The following dimensions are useful starting points. A technical drawing is especially helpful if your knife has a stepped profile, groove, specific working face or mounting details.

01 / OD

Outside Diameter

Share the required outside diameter in millimeters, preferably from your original drawing or specification.

02 / ID

Bore Diameter

Provide the inside diameter and any relevant mounting or shaft-fit information.

03 / THICKNESS

Blade Thickness

Confirm the overall thickness and any additional steps or shoulder dimensions.

04 / WORKING SIDE

Working Face & Land

Identify the working side and any cutting-land or working-face dimensions, where applicable.

05 / PROFILE

Edge & Groove Profile

Include the cutting-edge profile, bevel or groove section. A cross-sectional drawing is particularly useful.

06 / MOUNTING

Mounting & Locating Details

Share relevant locating faces, mounting holes, keyways or other installation features shown in the design.

Have Your Bottom Knife Details Ready?

Along with the main dimensions, please send any available information about:

  • Existing material grade and drawing requirements
  • Top knife dimensions and current condition
  • Machine or knifeholder model
  • Cutting material and quantity required
  • Delivery destination

You can start with a drawing, blade photos or the measurements you have. We'll discuss any missing information with you.

Request a Bottom Knife Quote

These are enquiry guidelines, not a claim that all bottom slitter knives share one standard size. Final dimensions and tolerances depend on the confirmed product drawing.

Will This Bottom Knife Match Your Existing Top Blade?

This is an important question when ordering a replacement bottom slitter knife. Matching the outside diameter, bore and thickness is only a starting point. The relationship between the two knife edges must also be considered.

Top and bottom circular slitter knives for matching reference

What Should We Check Together?

  • Working geometry: bottom knife face, edge position and matching top knife profile.
  • Existing top knife: current dimensions, wear condition and any regrinding history.
  • Mounting arrangement: knifeholder design, locating references and working sides.
  • Cutting conditions: paper grade, material thickness and any existing dust or burr problems.

If you plan to keep your current top knife, send us its details along with the bottom knife drawing. We'll help you review what needs confirming before ordering.

Explore Top Slitter Blades   |   View Matched Blade Sets

Installation note: Overlap, cant angle and knife pressure depend on the machine and knifeholder. Always follow the equipment manufacturer's applicable installation and safety instructions.

Bottom Slitter Knives for Paper & Packaging Equipment

We welcome bottom slitter blade enquiries for suitable paper converting, printing and packaging systems. Material characteristics and knifeholder arrangements can affect the blade design.

Paper Converting

Replacement bottom knives for applicable paper roll-slitting systems, including selected coated stocks.

Printing & Finishing

Blade replacement enquiries for compatible web handling, slitting and finishing equipment.

Packaging Converting

Bottom knife requirements for selected packaging materials, subject to the cutting method and blade specifications.

Replacing a Knife from an Existing Machine?

If your equipment is from Kampf, Atlas Converting, Nishimura, Goebel, Deacro, Dienes, Euromac or another manufacturer, send us the model, existing knife drawing and any available part number. We can review the replacement requirements using the information you provide.

SHJ KNIFE is an independent supplier of replacement industrial knives. Equipment names are for identification only. The machine brand alone does not establish compatibility, authorization or endorsement.

Bottom Slitter Knife Designs & Custom Options

Explore examples of bottom slitter knives from our product range. We can review different dimensions, working faces and blade profiles using your drawing or existing sample.

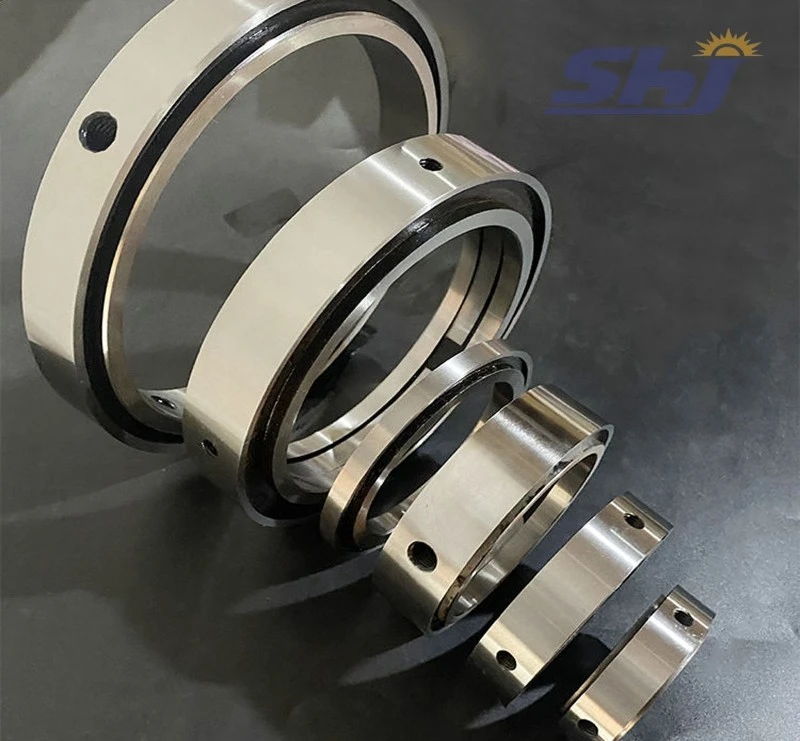

Bottom slitter blade product example one

Bottom Knife Example 01

Bottom slitter blade product example two

Bottom Knife Example 02

Bottom slitter blade product example three

Bottom Knife Example 03

Bottom slitter blade product example four

Bottom Knife Example 04

Bottom slitter blade product example five

Bottom Knife Example 05

Looking for a specialized groove design? See our Multi-Groove Bottom Knife product page.

A Closer Look at Knife Production & Inspection

Behind a replacement bottom slitter knife are important manufacturing and inspection details. These images offer a closer look at metalworking, machining, blade grinding and inspection processes. For your particular knife, we can review the required dimensions, material and checking criteria against the drawing.

Metalworking process involving an industrial circular blade

Metalworking

Blade-related processing and metalworking operations.

Machining equipment processing a metal component

Precision Machining

Machining operations where dimensions and geometry matter.

Grinding process on an industrial circular blade

Blade Grinding

Cutting-edge finishing and surface processing.

Optical inspection of an industrial metal cutting blade

Optical Inspection

Close-up examination of blade features and surfaces.

Dimensions & Working Surfaces

We can review your required outside diameter, bore, thickness, working face, edge profile and relevant mounting references.

Drawing & Inspection Requirements

If your drawing includes runout, flatness, concentricity, tolerances or material requirements, please include those details in your enquiry.

Which Material Is Right for Your Bottom Slitter Knife?

Choosing a bottom slitter knife material involves more than selecting the hardest steel. Wear resistance, toughness, sharpening requirements and your actual cutting conditions should all be considered.

D2 Tool Steel

D2 tool steel is one material option for suitable wear-resistant knife designs. We can review it against your existing blade and cutting requirements.

High-Speed Steel (HSS)

HSS bottom slitter knives can balance wear resistance, toughness and sharpening considerations. The grade should match the actual knife design and application.

Tungsten Carbide

Tungsten carbide offers high hardness and wear resistance. Edge geometry, chipping risk and machine conditions must also be considered before selecting it.

We can discuss other material grades or carbide-tipped designs where suitable. Available constructions should be confirmed against your drawing before ordering.

Should You Replace Only the Bottom Knife or Both Blades?

You may not need to replace both knives every time one becomes worn. The decision depends on the condition of the existing blades and the requirements of the slitting system.

Replacing the Bottom Knife Only

If your existing top knife will stay in service, send us its current details along with the bottom knife drawing. A reground top blade may differ from its original dimensions.

Ordering a Complete Blade Set

If both knives need replacing, we can review their dimensions and profiles together. Machine setup still needs to follow the relevant equipment requirements.

View Top & Bottom Slitter Blade Sets →

Questions Customers Ask About Bottom Slitter Knives

Not sure which replacement knife to choose or what is causing a cutting problem? These guides cover common questions about bottom slitter knives, blade matching, materials and setup.

Will My New Bottom Knife Match the Top Blade I Already Have?

Learn why dimensional matching alone may not be enough when you're keeping an existing top knife.

Should I Choose D2, HSS or Carbide for My Bottom Slitter Knife?

Compare material considerations for wear resistance, sharpening and your cutting application.

Why Is My Bottom Slitter Knife Leaving Dust or Ragged Edges?

Explore blade condition, pairing and machine setup factors behind common cutting problems.

What Should I Check When Installing Replacement Slitter Blades?

Review slitter blade installation and adjustment considerations. Follow your machine manufacturer's instructions.

Bottom Slitter Knife FAQs

What measurements do you need for a replacement bottom knife?

Start with outside diameter, bore diameter and thickness. Working-face, edge-profile and mounting details are also useful where applicable.

Can I replace the bottom knife without replacing the top knife?

That may be possible if the existing top blade is suitable for the proposed replacement and machine arrangement. Please share its current condition and available measurements.

Can you review an existing knife drawing or sample?

Yes, we welcome enquiries based on drawings, dimensions and samples. We'll discuss any additional information needed to review the design and prepare a quotation.

Does the machine brand alone confirm compatibility?

No. Knife configurations can differ even between machines from the same brand. The model, drawing, mounting arrangement and working geometry should be checked.

Send Your Bottom Slitter Knife Drawing for a Quote

Looking for a bottom slitter knife supplier for replacement knives, custom dimensions or regular purchasing? We'd be pleased to discuss your requirements.

Send us the blade dimensions, working-face details, machine information and any top knife matching requirements. We'll help you review the next steps before preparing a quotation.

Don't have a complete drawing? Send us the measurements or photographs you have. We'll discuss what else is needed.

Send Us Your Blade Details

  • Bottom knife drawing or photos
  • OD, bore and thickness
  • Working face and edge profile
  • Existing top knife details
  • Machine model and cutting stock
  • Quantity and delivery country
Request a Bottom Knife Quote
